PowerApps: Fetch Groups And Users

Hello Friends,

Welcome back with another post on PowerApps. Today, we will learn about fetching the Microsoft 365 groups created in AD and then it's members. So, let's start

Open the PowerApps maker portal and create a Canvas App.
Add-

Label - lblSearchGroupLabel
Text Input - txtGroupSearchText
Button - btnLoadGroups
DataTable - dtGroups
DataTable - dtGroupMembers

Initially, add Label, Text input, button.
Now, click on "Data" link from left navigation menu and the click on "Add data".
Here we will add "Office 365 Groups" connection. Search for "office 365".
Select the "Office 365 Groups" connector.

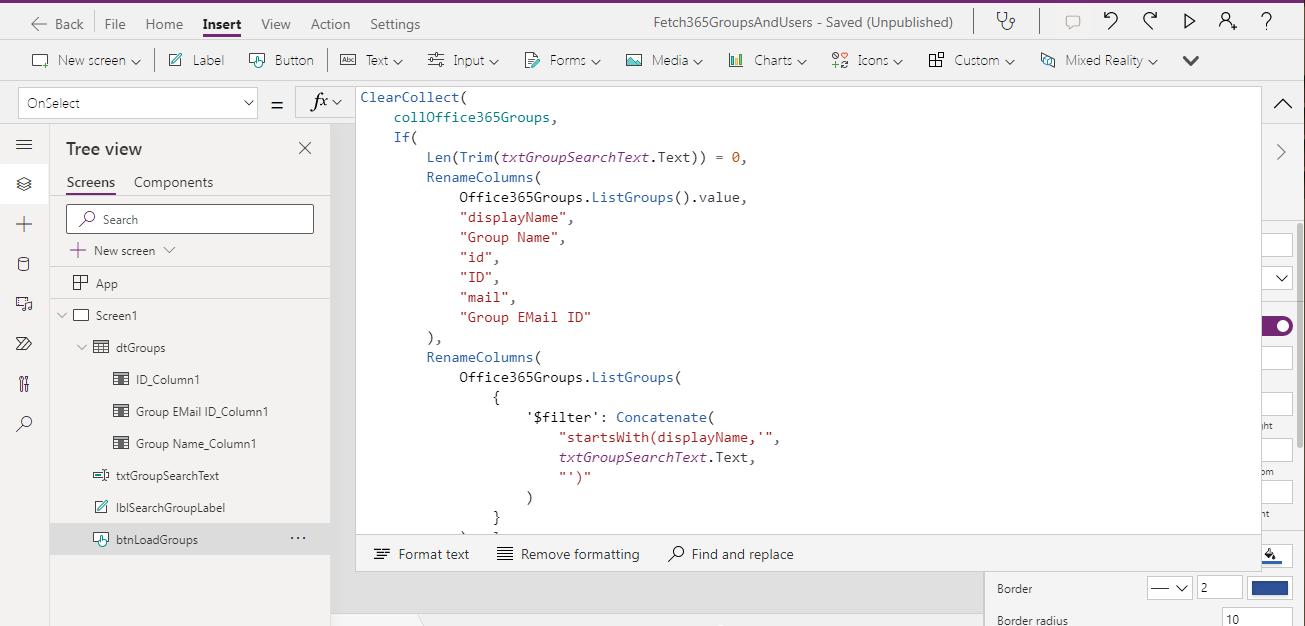

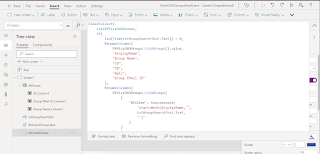

Now, on "OnSelect" property of btnLoadGroups, we will add below code to fetch Groups.

ClearCollect(
    collOffice365Groups,
    If(
        Len(Trim(txtGroupSearchText.Text)) = 0,
        RenameColumns(
            Office365Groups.ListGroups().value,
            "displayName",
            "Group Name",
            "id",
            "ID",
            "mail",
            "Group EMail ID"
        ),
        RenameColumns(
            Office365Groups.ListGroups(
                {
                    '$filter': Concatenate(
                        "startsWith(displayName,'",
                        txtGroupSearchText.Text,
                        "')"
                    )
                }
            ).value,
            "displayName",
            "Group Name",
            "id",
            "ID",
            "mail",
            "Group EMail ID"
        )
    )
);

Run the app and click on button so that the collection get its structure.
Now, add one DataTable (as mentioned above) named "dtGroups'. Provide the collOffice365Groups as Data Source. Then click on "Edit Fields" link and choose "Group Name", "ID", "Group Mail ID".
Now, we want to fetch the members of the group, which is selected by user in data table. So, for that, click on "ID_Column1" and choose the "OnSelect" property from the property dropdown.
Now update the logic as below-

ClearCollect(
    collOffice365GroupMembers,
    RenameColumns(
        Office365Groups.ListGroupMembers(dtGroups.Selected.ID).value,
        "displayName",
        "Member Name",
        "id",
        "ID",
        "mail",
        "EMail",
        "userPrincipalName",
        "User Principal Name"
    )
);

Now, this code will work only if the user clicks on ID column cell. If the user clicks on "Group Name" or "Group Email ID" column, it will not work.
For that, select these columns and update the "OnSelect" property as below.
Now, save the app and play. Load the groups and click on one of the group ID from data table "dtGroups". It will load the data in collOffice365GroupMembers collection.
Now add another data table "dtGroupMembers".
Select Data Source as collOffice365GroupMembers. Then click on Edit Fields and then click on Add field. Choose "Member Name", "EMail", "ID", "User Principal Name".
Save the app and play it. click on Load Groups button then select any group from the dtGroups table.
The only problem is that when we click on "Load Groups" button, the dtGroups gets loaded but the members of the default selected group doesn't populate in dtGroupMembers table.
Don't worry, just copy the code written on "ID" column >> OnSelect property of dtGroups table and paste it at the end of OnSelect code of btnLoadGroups.
Save the app and play it again.

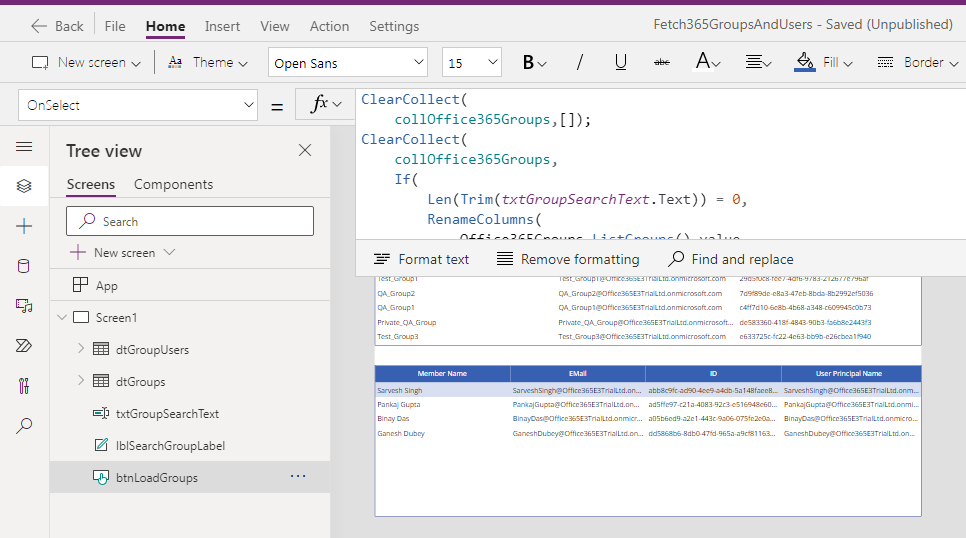

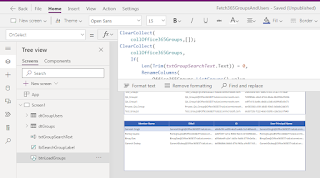

Now, the only issue you may face is that if the dtGroups is already populated with groups and you make a new search, the dtGroupMembers table doesn't get updated. For this, just clear the collOffice365Groups in the beginning of button click code.
That's all.
This is how, you can play with Office 365 groups and their members in PowerApps.
